Fluke | Digital Multimeter

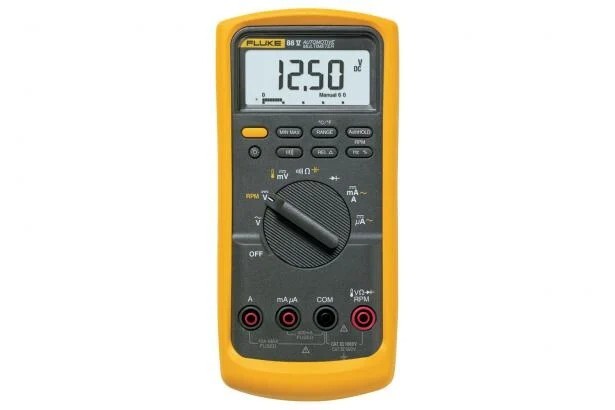

Fluke 88V Deluxe Automotive Multimeter

The Fluke 88V Deluxe Automotive Multimeter is a high-performance digital multimeter designed specifically for automotive diagnostics. It offers comprehensive measurement capabilities, including voltage, current, resistance, capacitance, frequency, duty cycle, and temperature, along with specialized functions like pulse width and RPM measurements. Built to withstand the demands of automotive environments, it provides accurate and reliable readings for both conventional and hybrid vehicles..

  • Detail
  • Special Features
  • Specification

The Fluke 88V is engineered to meet the rigorous demands of automotive diagnostics. Its specialized functions, such as pulse width and RPM measurements, make it an invaluable tool for diagnosing fuel injectors and ignition systems. The inclusion of a temperature measurement function adds versatility, allowing for comprehensive diagnostics of engine and exhaust systems. Designed for durability, the Fluke 88V can withstand the high-energy environments found in hybrid vehicles, ensuring reliable performance in challenging conditions.

  • Pulse Width Measurement: Millisecond resolution for troubleshooting fuel injectors.

  • Duty Cycle Measurement: Accurate measurement of duty cycles up to 99.9%.

  • Min/Max/Average Recording: Captures variations automatically for analysis.

  • Peak Min/Max Recording: Records transients as fast as 250 µs.

  • RPM Measurement: Capable of measuring RPM with optional inductive pickup.

  • Temperature Measurement: Includes an optional temperature probe for comprehensive diagnostics.

  • Analog Bar Graph: Tracks changing or unstable signals for real-time analysis.

  • Large Display with Backlight: Ensures visibility in various lighting conditions.

  • Magnetic Hanger: Allows hands-free operation by attaching the meter to most steel surfaces.

  • High Input Impedance: 10 MΩ input impedance prevents damage to sensitive circuits.

Measurement Range / Resolution Accuracy
DC Voltage 0.01 mV to 1000 V ±(0.1% + 1)
AC Voltage 0.01 mV to 1000 V ±(0.5% + 2)
DC Current 0.001 mA to 10 A ±(0.4% + 2)
AC Current 0.001 mA to 10 A ±(1.2% + 2)
Resistance 0.1 Ω to 50 MΩ ±(0.4% + 1)
Capacitance 0.01 nF to 9999 µF ±(1% + 2)
Frequency 0.01 Hz to 200 kHz ±(0.005% + 1)
Duty Cycle 0.1% to 99.9% ±(2% per kHz + 0.1%)
Temperature -200.0°C to 1090.0°C ±(1% + 2)
Conductance 0.01 nS to 60.00 nS ±(1% + 10)
Display 6000 counts, updates 4/sec -
Battery Life Approximately 800 hours -
Safety Rating CAT III 1000 V / CAT IV 600 V -
Operating Temperature -20°C to +55°C -
Storage Temperature -40°C to +60°C -
Size (H x W x L) 5.2 x 9.8 x 20.1 cm -
Weight 624 g -
